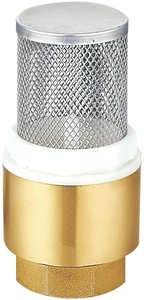

Foot-Valve-Brass25mm BSP Female Threaded connection with Hansen 25mm Socket

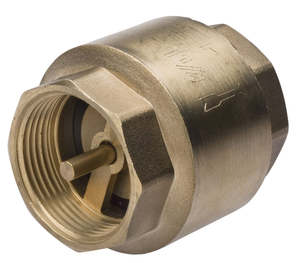

25mm / 1"BSP Female - Male Non Return/Spring Check valve

229‑4114‑200 50mm 2" 16 Bar 87mm 100mm Technical Features:Max pressure up to 60ºC. Max pressure 10Bar for 60-100ºCThreads according to ISO 228/1 Design:Valve body (1&2): BrassCore/Stem (3-1B &3-2B) BrassDisc(3-3): Stainless steelSeal(4): NBRSpring(5): Stainless steel

Model Size Material Seals Connection Type AP CV15 BSP DN15 UPVC EPDM 1/2 BSP Thread AP CV20 BSP DN20 UPVC EPDM 3/4 BSP Thread AP CV25 BSP DN25 UPVC EPDM 1 BSP Thread AP CV32 BSP DN32 UPVC EPDM 1-1/4 BSP Thread AP CV40 BSP DN40 UPVC EPDM 1-1/2 BSP Thread AP CV50 BSP DN50 UPVC EPDM 2 BSP Thread Featur...

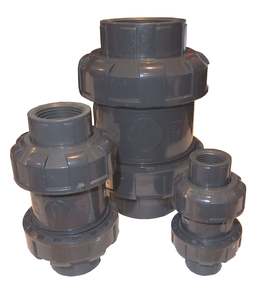

Model Size Material Seals Connection Type AP CV15 PVC DN15 UPVC EPDM 1/2 Socket End AP CV20 PVC DN20 UPVC EPDM 3/4 Socket End AP CV25 PVC DN25 UPVC EPDM 1 Socket End AP CV32 PVC DN32 UPVC EPDM 1-1/4 Socket End AP CV40 PVC DN40 UPVC EPDM 1-1/2 Socket End AP CV50 PVC DN50 UPVC EPDM 2 Socket End Features:High Quality UPVCEPDM SealsPressure Rated to 150PSITemperature 0-55°C

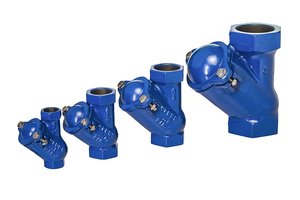

Available in 25, 32, 40, 50 and 80mm Material:Body: GG25/GGG40Ball: NBR/EPDMCap: GG25 GGG40Bolt: stainless steelNut: stainless steelGasket: NBR/EPDMWorking pressure: 1.0/1.6MPaWorking temperature:NBR: 0-80°CEPDM: -10-120°CConnection type: BSPTesting: DIN3230, API598Medium: fresh water, sea water, food stuff, all kinds of oil

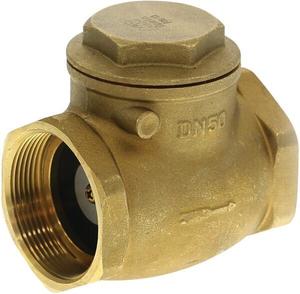

Please check our scroll down menu to see the sizes available15mm-100mm (please to check availability) Technical Details:Max pressure: 12BarOperating temperature range: -0 to 70ºCThreads according to ISO228Materials:Valve body, cap & Disc (1,2&3): BrassCap washer (4): FiberSeal (5): NBRWasher (4): Stainless steelBolt (7): Brass

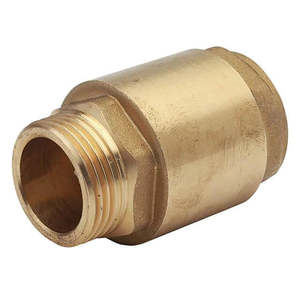

Brass NRV-25mm- Alternative Configuration25mm / 1"BSP Male-Female Non Return Valve/Spring Check Valve

The 5 Way Tee with check valve is ideal for simple set up of a pump pressure system with a 1″ male inlet port and two 1″ female outlet ports plus two 1/4″ female ports for gauges or control such as pressure switch or transducers.

The 5 Way Tee with check valve is ideal for simple set up of a pump pressure system with a 1.5″ male inlet and outlet port, a 1″ female outlet port plus two 1/4″ female ports for gauges or control such as pressure switch or transducers.

Brass NRV-25mm- Alternative Configuration (Box of 20)25mm / 1"BSP Male-Female Non Return Valve/Spring Check Valve

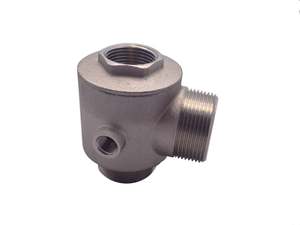

Stainless Steel 5 WAY T with Valve 1 INCH/25mmThe 5 Way Tee with check valve is ideal for simple set up of a pump pressure system with a 1″ male inlet port and two 1″ female outlet ports plus two 1/4″ female ports for gauges or control such as pressure switch or transducers.

Stainless Steel 5 WAY T with Valve 1.5 INCH/40mmThe 5 Way Tee with check valve is ideal for simple set up of a pump pressure system with a 1.5″ male inlet and outlet port, a 1″ female outlet port plus two 1/4″ female ports for gauges or control such as pressure switch or transducers.
