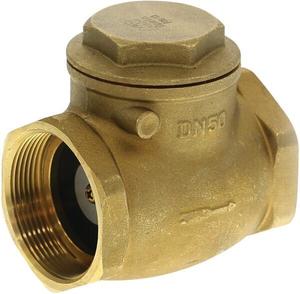

Swing Check Valves

Please check our scroll down menu to see the sizes available
15mm-100mm (please to check availability) Technical Details:

Max pressure: 12Bar
Operating temperature range: -0 to 70ºC
Threads according to ISO228
Materials:

Valve body, cap & Disc (1,2&3): Brass
Cap washer (4): Fiber
Seal (5): NBR
Washer (4): Stainless steel
Bolt (7): Brass
