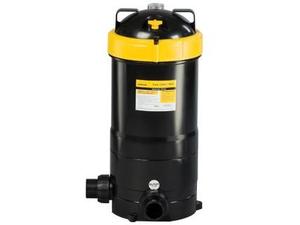

Davey Easy Clear Cartridge Filter Range

Model Pool Size (L) Surface Area (m2) Max Flow Rate Pipe Size 39050 40,000 4.65 205lpm 40/50 39075 40-60,000 6.95 270lpm 40/50 39100 50-70,000 9.29 340lpm 40/50 39150 60-80,000 13.93 450lpm 40/50 39175 90-130,000 16.25 540lpm 40/50 39225 150,000 20.90 670lpm 40/50

(Some models are currently - please enquire about availability) Applications

Inground and above ground pools
Suitable for salt, mineral salt and fresh water pools
Models suitable for pools up to 300,000 litres. Features

Less water used, no backwashing needed
Perfect for use with energy efficient pool pumps
Easy to maintain and clean >Replacement filter elements available
The filter lid is retained by a lock ring which enables easy access for element cleaning
A.B.S. tank construction is robust, UV resistant and non corrosive for long life
Low profile design means elements are easier to lift out for cleaning and require less height for installation
The element is constructed of Du Pont Reemay which is recognised for its excellent filtration and long life
A quality pressure gauge makes it easy to see when element cleaning is required
A manual air bleed enables the filter to be de-pressurised before opening for cleaning
A choice of two inlet ports enables the inlet plumbing to be installed at either 90º or 180º to the outlet for greater flexibility in installation
A.B.S. Barrel unions are supplied to make installation simple

Data Sheet

Warranty- 5 Years
