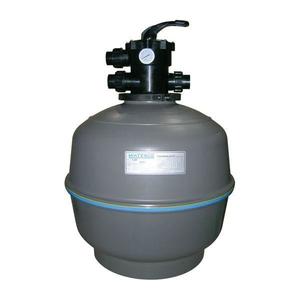

Exotuf Top Mount Sand Filter Series

E600 40mm 400mm 226 81,000 189 130

Bed Depth:

E400: 160 mm

E500: 250 mm

E600:250 mm

Designed to cope with the cyclic pressures of the modern day swimming pool, Exotuf filter vessels are precision injection moulded for superior strength and dependability.

Granular media filtration
Multiport valve for ease of use
Pressure rated at 250kPa (E400) and 350 kPa (E500, E600)
Corrosion and UV resistant Applications:

Exotuf filters are ideal for pools equipped with in floor cleaning systems and highpowered pumps. Features: Superior Strength

Exotuf filters are considered one of the strongest filters within its class. Its filter vessel is precision injection moulded within minimal tolerances for enhanced structural strength.
Pressure rated at 350 kPa, Exotuf filters are ideal for pools equipped with in floor cleaning systems and high powered pumps. Ease of Maintenance

Cleansing the filter simply requires turning the filter’s multiport lever from the “filter" position to the “backwash" position, which reverses the flow of water in the filter, flushing the filter bed.
Multiport valve with ergonomic handle and quick connect barrel unions
Multiport valve clamp provides 360° orientation of the Multiport valve for simple installation and service
Clear sight glass for backwash inspection
Pressure gauge to determine the filter’s capacity
UV and corrosion resistant
Hydraulically balanced flow distribution, to maximise filtration and backwashing
Large filter base for stable floor mounting

Warranty:
Multiport Valve & other componants- 1 Year
Filter Tank- 5 Years (4 Years Pro rata)
