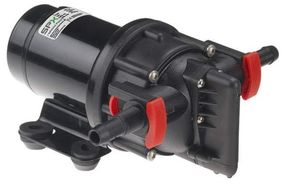

Johnson Aqua Jet Pressure Pump - 5.2 GPM (20 lpm)
WPS 5.2 (12v)
WPS 5.2 (24v)
The new Aqua Jet five-chamber diaphragm pump from SPX Johnson Pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats. The new generation of WPS pumps - 12V or 24V DC. Quiet and pulsation-free.
Specifications:
Max Flowrate: 20 LPM
Max pressure: 2.8 bar/41 psi
Diaphragm: Santoprene
Valves EPDM
Body PP
Motor 150W
Weight 2 kg /4.5 lbs
Length 240 mm/9.46"
Width 214 mm/8.42"
Height 110 mm/4.33"
Features:
Whisper quiet operation
Five-chamber construction
Self-priming
Easy, low cost maintenance
Quick-connect hose or threaded connectors available
Pressure switch standard
CE-approved
Operates in fresh or sea water
A Johnson Strainer must be used with this pump.
It is recommended to install the WPS-pumps with an accumulator tank
