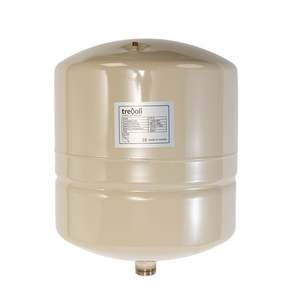

18L Trevoli Pressure Tank Vertical

PT18

The Trevoli PT series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound. Trevoli PT series pressure tanks are made with a stainless steel system connection and are finished with an appliance quality paint finish especially suited for outdoor installations. Trevoli PT series pressure tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

Our Trevoli Pressure Tanks come pre-charged to 58 PSI (4 bar) and are charged with Nitrogen gas. Simply put, the use of nitrogen in Pressure tanks effectively displaces moisture and oxygen and creates a more stable climate.

(Available in Vertical model only) Specifications:

Size: 18L
Drawdown: 7.2L
Dimensions: 280mm x 370mm
Weight: 3.7kg
Max temperature: 100°
Max Working Pressure: 10 Bar
25mm Outlet
Applications:

Booster systems
Shallow jet pumps
Centrifugal pump configurations Features:

Rugged outer shell
10 bar pressure rating
Single diaphragm design
Comprehensive testing
Virgin Polypropylene liner
Patented stainless steel water connection
Leak free O-Ring sealed air valve
Maintenance free

5 YEAR TANK REPLACEMENT GUARANTEE
