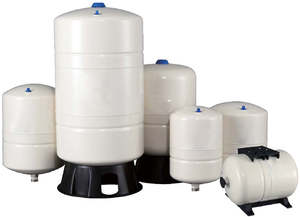

240L Trevoli Pressure Tank

Trevoli pressure tanks reduce the number of starts your pump makes which increases its life. The PT series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound.
Trevoli pressure tanks are made with a stainless steel system connection and are finished with an appliance quality paint finish especially suited for outdoor installations. Trevoli pressure tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

(Available in Vertical model only)

Our Trevoli Pressure Tanks come pre-charged to 30 PSI and are charged with Nitrogen gas. Simply put, the use of nitrogen in pressure tanks effectively displaces moisture and oxygen and creates a more stable climate. Applications:

Pressure Wave tanks are ideally suited for:
Booster systems
Shallow jet pumps
Centrifugal pump configurations
Specifications:

Size: 240L
Drawdown: 80L
Dimensions: 92.4cm x 53cm
Weight: 31.4kg
Max temperature: 100°
Max Working Pressure: 10 Bar
32mm Outlet
Features:

Stainless Steel Water Connection Corrosion Resistant For Longer Life
Controlled Action Diaphragm Longer Life
Brass Air Stem With Sealing Cap Eliminates Air Leaks, Longer Life,
No Regular Air Checks Required
Appliance Quality Paint Finish Looks Better, Longer Life.
Food Grade FDA Approved High-Grade Butyl Membrane
Suitable For Drinking Water, Longer Life, Bacteria Resistant
Condensation Reducing Design Reduces Corrosion, Increases Life

5 YEAR TANK REPLACEMENT GUARANTEE
