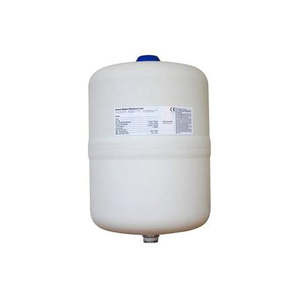

35L GWS Pressure Wave Tank - Vertical

PT35V (GWS) Pressure Wave Tank - Vertical

PT35V (GWS)

Pressure tanks reduce the number of starts your pump makes which increases its life. The Pressure Wave series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound. Pressure Wave tanks are made with a stainless steel system connections and are finished with an appliance quality paint finish especially suited for outdoor installations. Pressure Wave tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

(Available in Vertical model only) Specifications:

Size: 35L
Drawdown: 11L
Dimensions: 480mm x 320mm
Weight: 7kg Applications:

Booster systems
Shallow jet pumps
Centrifugal pump configurations Features:

Stainless Steel Water Connection Corrosion Resistant For Longer Life
Controlled Action Diaphragm Longer Life
Brass Air Stem With Sealing Cap Eliminates Air Leaks, Longer Life,
No Regular Air Checks Required
Appliance Quality Paint Finish Looks Better, Longer Life.
Food Grade FDA Approved High-Grade Butyl Membrane
Suitable For Drinking Water, Longer Life, Bacteria Resistant
Condensation Reducing Design Reduces Corrosion, Increases Life

5 YEAR TANK REPLACEMENT GUARANTEE

Click here to display the GWS Pressure Wave Tank Data Sheet
