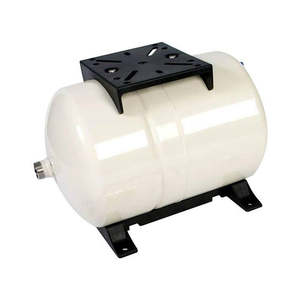

60L Trevoli Pressure Tank - Horizontal or Vertical

PT60V, PT60H

Trevoli pressure tanks reduce the number of starts your pump makes which increases its life. The PT series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound. The PT series tanks are made with a stainless steel system connection, are available in both vertical and horizontal models and are finished with an appliance quality paint finish especially suited for outdoor installations. Trevoli PT series tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.

Our Trevoli Pressure Tanks come pre-charged to 30 PSI and are charged with Nitrogen gas. Simply put, the use of nitrogen in Pressure tanks effectively displaces moisture and oxygen and creates a more stable climate. Specifications:

Size: 60L
25mm Thread (Vertical tank has elbow)
Drawdown: 23.20L
Dimensions: 381mm x 630mm
Weight: 9.7kg
Max temperature: 100°
Max Working Pressure: 10 Bar
25mm Outlet
Applications:

Booster systems
Shallow jet pumps
Centrifugal pump configurations Features:

Stainless Steel Water Connection Corrosion Resistant For Longer Life
Controlled Action Diaphragm Longer Life
Brass Air Stem With Sealing Cap Eliminates Air Leaks, Longer Life,
No Regular Air Checks Required
Appliance Quality Paint Finish Looks Better, Longer Life.
Food Grade FDA Approved High-Grade Butyl Membrane
Suitable For Drinking Water, Longer Life, Bacteria Resistant
Condensation Reducing Design Reduces Corrosion, Increases Life

5 YEAR TANK REPLACEMENT GUARANTEE
