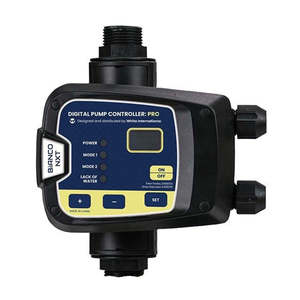

BIA-NXTPRO - Bianco ICON nXt PRO Pump Controller
Please regarding product as we don't always carry this item in stock
808035
The nXt series of pump controls represents the next step in pressurized pump control.
Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurized water when and where you need it the most. Specifications:
Function: ON/OFF Adjustment
Modes: 2
Power: 2.2kW
Voltage: 220-240v
Max Amps: 16
Rated Power: 2200w
Start Pressure: Adjustable
Stop Pressure: Adjustable
IP65
Inlet/Outlet size: 25mm/1"
Max Liquid Temp: 40°C
Plug & Play
Power Cable: 10 AMP Two operational modes:
Mode One
Adjustable cut in pressure setting.
Controller stops pump when flow drops.
Mode Two
Adjustable cut in and cut out pressure.
Shut down governed by pressure. Requires pressure tank. Features:
Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection Applications:
Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:
Household water supply
Irrigation
Water transfer
Washing systems
Pressure boosting Design:
Technopolymer
2 Year Warranty
