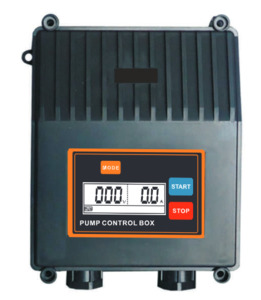

MP-S1 Plus Pump Controller

The MP-S1 Plus Single Phase Pump Control Panel is an intelligent device designed to ensure the efficient and reliable operation of single-phase pumps. Its key feature, Parameter Calibration, allows the controller to memorise crucial running parameters, providing tailored and reliable protection for various pump applications. The MP-S1 does this by logging a memory of power use at different stages of use. Once this memory is set, any operation over or under these ranges, the MP-S1 will terminate operation. This advanced control panel is versatile, capable of managing pumps for water supply and drainage by utilising different sensors and switches. Specifications:

220-240V
Single Phase
50/60Hz
Rated Power range: 370w - 2200w
IP54 protection
Working temp range: -25°C to 55°C
Features:

Overload protection
Over / Under voltage protection
Pump stall protection
Dry run protection with sensor
Memory function when power off & recovery
Visual & Audible alarm for fault prompt
Simple push button calibration
Dynamic LCD
Applications:

Ideal for pump systems that have dynamic flow / pressure demands
Household water supply
Irrigation
Water transfer
Washing systems
Pressure boosting
Wastewater Pumps
Information:

Manual

2 Year Back to Base Warranty
