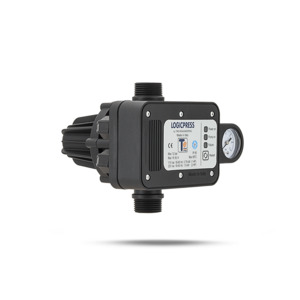

Trevitech Logic Press

The Logic Press auto pump controller is a simple and reliable device to control and protect a single phase pump up to 1.5Kw (8A). The controller has 1″ ports for simple installation in most pump systems. This controller has adjustable pump activation pressure settings which will turn pump on when the system pressure drops below either 1.5, 2 or 2.5 bar and turns the pump off when pressure is above minimum required and the flow has stopped.

It will protect the pump from damage in case of a run dry failure and will attempt periodically over 24 hours to auto restart or can be manually restarted with simple push button.

Gauge fitted to show pump performance and for simple trouble shooting of system. Technical Features:

Max pressure: 12Bar
Operating temperature range: -0 to 60ºC
Connection Thread: 1" male
Cut-In Pressure: Adjustable cut in pressure: 1.5, 2.0, 2.5 Bar
Minimum pump pressures (depending on set cut in pressure): 1.5Bar = 3.0Bar. 2.0Bar=3.5Bar. 2.5Bar =4.0Bar
Automatic reset/restart following run dry: If the pump runs dry the controller will attempt to re-prime 10 times over 24hours, each attempt lasting 5 seconds.
24H Anti-Jam function: If the pump remains idle for 24 consecutive hours the controller will run the pump for 5 seconds to prevent the pump from jamming.

TWO YEAR WARRANTY
