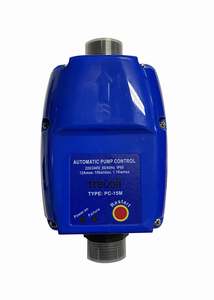

TREVOLI PC-15M Adjustable Electronic Pump Controller

PC-15M

The Trevoli PC-15M is an adjustable electronic pump controller designed to automatically control the starting and stopping of a pump based on preset start and stop pressures. It is ideal for applications when a higher cut-out pressure is required. Specifications:

Rated voltage: 220-240v
Max. Current: 12A
Frequency: 50Hz
Joint screw: 25mm or 1 inch
Starting pressure to choose: 1.5bar-3.5bar (default setting 1.5 bar)
Max Working prssure: 10bar
Protection Garde: IP65
Max Operating temperature: 60 degrees
Features:

Colour: Blue
Adjustable starting pressure to choose: 1.5bar-3.5bar (default setting 1.5 bar)
A user-friendly interface with LED indicators displaying power on, failure and restart
Wetted parts are made from high quality materials
Comes wired with 3 pin plug for the mains and a 3 pin receiver for the pump motor
