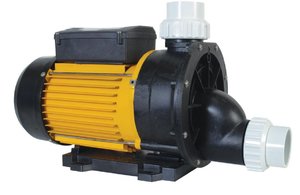

TREVOLI - TDA100 - Spa Pool Pump - 750w/1HP

The Trevoli TDA Series Spa Pool pump range are robust and powerful single speed centrifugal pumps with several motor sizes, designed to suit a large range of Spa pool sizes and applications. Robust, energy efficient and very quiet – the hallmarks of the Trevoli pool pump range. Specifications:

Motor 750W (1.0hp)
Max Flowrate 320 L/min (19200 L/H)
Max head 12M
Inlet and Outlet diameter: 40 mm
Weight 9 KG Features:

Corrosion protected shell to prevent water directly contacting with motor
Pump body and impellor in highly reinforced engineering grade plastic, motor shaft stainless steel, aluminium motor housing.
IPX5 protection.
Insulation class F
CE Authentication
Mechanical seal is ceramic stealite/ metalized carbon.
Rated for continuous use
Very quiet operation Applications:

Spa Pool / Swimming Pool Pump suitable for 6 - 8 jets Heater Option:

Suits H20-R2
Suits H30-R2

TWO YEAR WARRANTY

Trevoli Spa Pool Pump Data Sheet

Parts List
