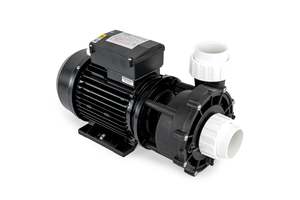

Trevoli - WP200-1 Single Speed Spa Pump

The Trevoli WP200 Spa Pool pump is a robust and powerful centrifugal pump designed to suit spa pools with 16-20 Jets. Efficient, compact and very quiet, the WP series is ideal for spa pools, swimming pools, spa baths & aquaculture. The pump wet end can be rotated to adjust to allow for easier installation. Specifications:

Motor: 1.5 kW (2hp)
Max Flowrate: 620 LPM
Max head 14M
Inlet and Outlet diameter: 50mm
Weight 16.3 KG
Total amps 7 amps
3 pin plug not supplied Features:

Corrosion protected shell to prevent water directly contacting with motor
Pump body and impeller in highly reinforced engineering grade plastic, motor shaft stainless steel, aluminium motor housing.
IPX5 protection.
Insulation class F
CE Authentication
Mechanical seal is ceramic stealite/ metalized carbon.
Rated for continuous use
Very quiet operation Applications:

Spa Pool Pump suitable for 16 - 20 jet Heater Option:

Suits H50-R1 (3.0 kW, 50mm)

TWO YEAR WARRANTY
