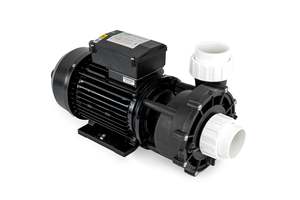

TREVOLI - WP300-11 TWO SPEED SPA PUMP 2.2kW/0.45kW

WP300-11

The Trevoli WP Series Spa Pool pump range are robust and powerful Two speed centrifugal pumps with several motor sizes, designed to suit a large range of Spa pool sizes and applications. Robust, energy efficient and very quiet – the hallmarks of the Trevoli pool pump range. Specifications:

Motors:
High Speed: 2.2kW
Low Speed: 0.45kW
Voltage: 230v
Max Flowrate: 730 L/min (43,800 L/hour) and 330 L/min (19,800 L/hour)
Total amps: 13 (10a plus 3a)
Max head: 18M
Inlet and Outlet diameter: 50mm
Weight: 18.5 KG
3 pin plug not supplied, cable only
Features:

Corrosion protected shell to prevent water directly contacting with motor
Pump body and impeller in highly reinforced engineering grade plastic, motor shaft stainless steel, aluminium motor housing.
IPX5 protection
Insulation class F
CE Authentication
Twin motor efficiency
Mechanical seal is ceramic stealite/ metalized carbon
Rated for continuous use
Very quiet operation
Working Conditions:
Medium Temperature: 5-50°C
Environmental Temperature: Up to 50°C
Dimensions:
Length: 434mm
Width: 202mm
Height: 235mm Applications:

Spa Pool Pump suitable for 18-22 jets

TWO YEAR WARRANTY
