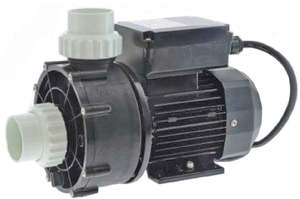

Trevoli WTC100-1 Single Speed Spa Pump
WTC100
The Trevoli WTC100-1 Series Spa Pool pump is a robust and powerful single speed centrifugal pump ideal for spas with 6-8 jets. Efficient and very quiet, the WTC100-1
Ideal for spa pools, swimming pools, spa baths & aquaculture. The pump body can also be rotated to allow easier installation. Specifications:
Motor 750W (1.0hp)
Max Flowrate 460 L/min (27600 L/H)
Max head 10M
Inlet and Outlet diameter:40 mm
220-240V
Single Speed Features:
Incorporated Air Switch
Corrosion protected shell to prevent water directly contacting with motor
Pump body and impeller in highly reinforced engineering grade plastic
Stainless steel motor shaft
Aluminium motor housing
Fitted with high temperature bearings for a long service life
Mechanical seal is ceramic stealite / metalized carbon
Very quiet operation Technical Features:
3.8 Amps
Speed: 2900 RPM
Medium Temperature: 5-50°C
Environmental Temperature:< 40°C
Maximum Working Pressure: 0.3MPa
IPX5 protection
Insulation class F
Rated for continuous use Applications:
Spa Pool / Swimming Pool Pump suitable for 6-8 jets
Heater Option:
Suits H20-R2
Suits H30-R2
TWO YEAR WARRANTY
