DAVIES Switchgenie Dual Pump Controller

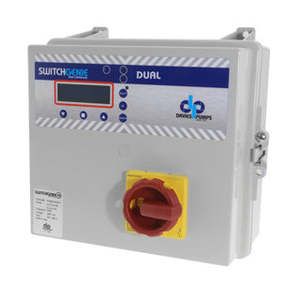

Davies Switchgenie DUAL control panel

The Davies Switchgenie DUAL control panel is designed to control two pumps DOL either tank filling or emptying in clean or waste water applications. It provides pump protection with self learning of pump operating data, including run dry failure and monitoring of power supply and motor limits. Simple and fast to install with electrical main lock out switch and easy to use operating menu with LCD screen and status indicator lights. Three standard models with single or three phase power supply to operate motors from 0.37Kw to 11Kw and cover a wide range of applications with float switches, probes, pressure switch or pressure transducer inputs. Specifications: Model Motor Size Phase Voltage 228-SG-30 0.37-2.2 kW 1/3 230 228-SG-35 0.55-7.5 kW 1/3 400 228-SG-36 7.5-11.0 kW 1/3 400

Features:

Single Panel for potable or waste water applications
Self Learning of Pump motor Data
Works with floats, pressure switches or probes
4-20mA input for pressure transducer
Dry Run Protection by minimum Cos Fi
Min/Max Water Level Alarm
Phase Failure Protection
Automatic Failure Restart System
Max Hourly Pump Start Limit
24H Timer Start/Stop
Alarm Outputs
