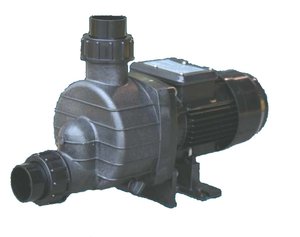

Aquastream Solar MKII

Aquastream Solar 150 1.5 1.15 5.0 390 lpm 15m 60,000-80,000L 40mm

230v
Single Phase
RPM: 22860 Features:

Efficient Impeller and Diffuser Design
Simple to operate and easy to maintain, the Aquastream solar pump is well known for its quietness and reliability. Aquastream solar pumps incorporate essential features required to make them compatible with solar pool heating systems. The pump’s impeller and diffuser design maximizes the hydraulic output of the pump while minimizing turbulence. The pump’s efficient hydraulic performance shortens run times and reduces energy consumption leading to lower operating costs.

Engineered Durability
The pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength. A high grade 316 stainless steel mechanical seal is incorporated for extra protection against corrosion. e.g. from chlorinated water, ozone, iodine, Baquacil, bromine and salt water.

Secondary Seal
Situated between the pump wet end & the pump motor, a mechanical seal forms a seal around the motor shaft to prevent water from running out along the shaft of a motor. The mechanical seal is the wearing part of any pool pump. A mechanical seal may leak water if the pump is ever run dry or simply be worn out. If a leaky mechanical seal is not replaced promptly, water will travel up the shaft of the motor and ruin the motor in a very short period of time. Waterco’s Secondary Seal protects the pump motor’s end shield from any water contact, by capturing any leaks through a worn out mechanical seal and draining it out of the pump. Motor Features:

Heavy duty motor
IP44
Motor shaft 303 grade stainless steel.
Fan cooled.
Thermal overload Material Design:

Pump body - Glass Filled Thermoplastic
Mechanical seal - High grade carbon/graphite with 316 stainless steel
Secondary seal - protects the pump motor end shield from any water contact, by capturing any leaks through a worn out mechanical seal and draining it out of the pump.
Hydraulically efficient impeller/diffuser
Solar check valve – prevents water flowing back to the pump Applications:

Solar pool heating systems

THREE YEAR WARRANTY
