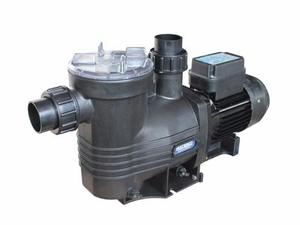

Supastream Swimming Pool Pump

SS150 1.50 1.09 4.76 490 13.5 80-90,000 40/50mm
Features:

Efficient Impeller and Diffuser Design
The pump’s impeller and diffuser design maximizes the hydraulic output of the pump while minimizing turbulence. The pump’s efficient hydraulic performance shortens run times and reduces energy consumption leading to lower operating costs.

Engineered Durability
The pump body is manufactured utilising state of the art engineering plastic moulding with a single piece strainer pot and volute for extra strength. A high grade 316 stainless steel mechanical seal is incorporated for extra protection against corrosion. e.g. from chlorinated water, ozone, iodine, Baquacil, bromine and salt water.

Secondary Seal
Situated between the pump wet end & the pump motor, a mechanical seal forms a seal around the motor shaft to prevent water from running out along the shaft of a motor. The mechanical seal is the wearing part of any pool pump. A mechanical seal may leak water if the pump is ever run dry or simply be worn out. If a leaky mechanical seal is not replaced promptly, water will travel up the shaft of the motor and ruin the motor in a very short period of time. Waterco’s Secondary Seal protects the pump motor’s end shield from any water contact, by capturing any leaks through a worn out mechanical seal and draining it out of the pump. Technical Features:

Quick connect barrel unions for UPVC pipe
High performance motor
IP44 rating
Fan cooled
Thermal overload protection
Strainer basket - capture debris and protects the pumps impeller. Material Design:

Motor shaft 303 grade stainless steel.
High grade carbon/graphite mechanical seal with 316 stainless steel spring assembly.
Stable support base
Secondary Seal - For extra protection of the pump motor
Secondary seal drain pipe
Hydraulically efficient impeller and diffuser design
Drain plugs
Strong single piece glass filled thermoplastic pump body Applications:

Supastream pumps are general purpose units designed for use in:
Swimming pools
Low pressure recirculation applications

THREE YEAR WARRANTY

Data Sheet
