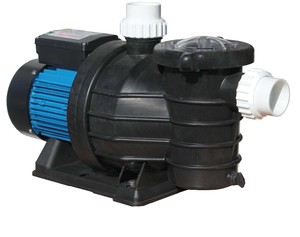

TREVOLI - S150 - Swimming Pool Pump - 750 watt - 1 HP

The Trevoli “Silent-flow" Series Swimming Pool pump range are robust and powerful single speed pool pumps with several motor sizes, designed to suit a large range of pool sizes and applications. Robust, energy efficient and very quiet – the hallmarks of the Trevoli swimming pool pump range. The Trevoli “Silent-flow" Series range of swimming pool pumps are the perfect pool pump for all pool applications. With single speed models starting at.2hp and moving through the range up to 2.3hp, there is one to suit a normal residential pool or a semi-commercial or smaller public pool.
Specifications:

Motor 750W (1.1 hp)
Max Flowrate 350 L/min (21000 L/H)
Max head 17M
Barrel Unions supplied to suit 40mm ID (48mm OD) PVC Piping
Weight 12.5 KG
Liquid operating range: 5 to 50 deg C
Decibel Rating at 1m Head: 40db
Features:

Corrosion protected shell to prevent water directly contacting with motor
Pump body and impellor in high fibre reinforced engineering plastic, motor shaft stainless steel, aluminium motor housing.
Easy to remove and install filter cover
Vibration resistant base for quiet operation
IPX5 protection.
Insulation class F
CE Authentication
Thermal overload protection
Mechanical seal is ceramic stealite/ metalized carbon.
Rated for continuous use
Comes with large strainer basket and clear cover.
Suitable for salt water pools
Very quiet operation Applications:

Suitable for pools 60 to 80,000L
Chlorinated pools
Salt water pools

TWO YEAR WARRANTY
