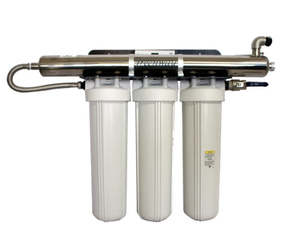

Greenway - Whole house - UV Opt 6-Deluxe

UV systems are designed with compact, high-grade stainless steel chambers which house our efficient, colour coded UV lamps. Separate electronic controllers(ballasts), power the UV lamps and effectively control the system diagnostics. The single ended lamp design promotes user-friendly, easy lamp changes and simple periodic quartz sleeve cleaning. The is unique to Greenway Water Technologies.

(For Best results install cartridge filtration before the UV system) Specifications:

Recommended Flow: 92 LPM @ 30mJ/cm2
Maximum Flow: 174LPM @ 16mJ/Cm2
Dimensions: 1.10m x 0.22m x 0.78m
Max System Pressure: 90 PSI/620KPA
Power: 230v
Port Size: 25mm
Water Temperature Range: 4.4-37.8 degrees
Features:

99% sterilization of bacteria, Ecoli, viruses, protozoan cysts, cryptosporidium & Giardia
No chemicals added to water and no water chemistry changes
Lamp failure alarm and lamp replacement reminder with LED countdown display
Low maintenance and easy servicing
Hard glass, long life UV lamp for consistent maximum UV output over entire lamp life
Compact design for reduced footprint and improved disinfection
Electronic controller with AC input, constant lamp current & low power consumption
Third party bioassay tested on every system
Technical Features:

1 x Greenway UV Can
GW GAUV-15S Lamp
3 x 20" Jumbo Big white Housing
1 x MBLSS- Twin Large Bracket & screws
First Filter: 1 x 20" Jumbo-Pleated 20BPF (20 Micron)
Second Filter: 1 x 20" Jumbo-Poly Spun 20BPX01 (1 micron)
Third Filter: 1 x 20BRFGAC
1 x Surge protector
Flexi hose
Black bracket
Fittings
Ball valve Applications:

UV water disinfection is a natural process which does not add any chemicals into your water, nor alter the water chemistry. Ultraviolet light energy inactivates harmful microorganisms such as bacteria and viruses by disrupting the DNA, effectively preventing them from multiplying and causing illness. The pathogens are destroyed in the time water passes through the disinfection chamber. E-coli, Cryptosporidium, and
Giardia lamblia (Beaver Fever) are examples of waterborne microorganisms that cause numerous gastrointestinal illnesses which are easily controlled with UV disinfection.

Housings Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements. Greenway UV Can - Made in Canada

TWO YEAR BACK TO BASE WARRANTY
