Trevoli - Sentry 102

Sentry 102

This system treats Cryptosporidium & more. The Sentry 102 is an all in one water filtration system, where water passes through three different filtration stages to reduce sediment, odor, colour and taste issues. The treatment then ends with a dose of UV to destroy harmful micro-organisms including E-coli, Cryptosporidium, C ampylobacter and Giardia.

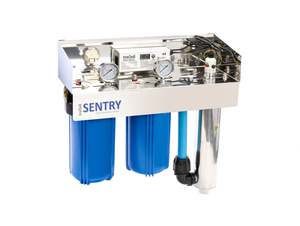

This stainless steel unit comes completely assembled for "plug and play" functionality, needing only to be wall mounted. Can be configured for left or right side water entry (see drop down menu) Applications:

This system is ideal for medium to large homes where water may be contaminated with "faecal coliforms". This can be from bird and possum waste on roofs and gutters or live stock run off entering streams and shallow bores. Specifications:

Council recommended level : 75 LPM (40 mJ/cm2)
Nominal recommended flow: 94 LPM (30 mJ/cm2)
Maximum recommended flow: 132 LPM (16 mJ/cm2)
1 x 48 watt high intensity lamp
Inlet/Outlet 1" (25mm)
Temperature range 2-40 degrees
Max pressure 125 psi
Dimensions in mm (LxWxH) 580x220x580 Features:

Quality Stainless Steel housing with cover
Fully assembled 48W UV lamp & quartz s leeve
2 x 10" Jumbo Big Blue water filter Housing Kits (BB10)
1 x 10" Jumbo Pleated 20 micron filter
1 x 10" Jumbo Polyspun 1 micron filter
1 x Automatic control ballast with 365 day countdown timer
2 x Pressure gauges
1 x Spanner

3 Year Back to Base Warranty
Pro Rata Warranty on UV Lamp
It is highly recommended a surge protector is installed (please see dropdown menu) to prevent surges and power cuts damaging the UV unit. This will effect the outcome of the warranty for the ballast and lamp.
