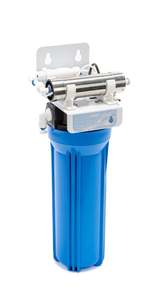

TREVOLI - 2 Stage Underbench LED UV Sterilizer & Filtration System

UVLED81 For Rainwater and Mains Supply Water

This system treats Cryptosporidium & more

The Trevoli UVLED81 consists of a single water filter housing kit, with 1st stage filtration to remove sediment (sand, silt, dirt and rust particles). Attached is an LED UV sterilizer, designed for both mains and rainwater supply. This filter system is highly effective in neutralizing 99.9% of bacteria and parasites in your water. This easy to install system inactivates bacteria and viruses (such as E-coli, Salmonella) and is perfect for residential properties. Environmentally Friendly - no chemicals added to water and no water chemistry change.

(Please note, a pressure reducing valve is required for high pressure situations, pressure must be reduced to 250kpa) Specifications:

1st Stage - Spun PP 1 micron filter removes particles suspended in water (basically anything you can see). Sand, silt, dirt and rust.
2nd Stage - UV LED sterilizer neutralizes 99.99% of harmful bugs.
230v
Operating Temperature: 2°C - 40°C
Maximum Operating Pressure: 125 PSI (8.6 Bar)
Nominal Flow Rate: 4 Lpm
Connection Size: 6mm
Lamp Wattage: 8w Features:

Comes with faucet
Standard 10"x2.5" Filter Housing
10"x2.5" Sediment Filter
Long lasting LED lamp
Smart Flow Switch
Coated Steel Bracket
Power adapter for UV LED
Attached clamps
Spanner
1/4 Tube 1.5m
Take Off Valve
UV Dosage:

Flow rate @95%UVT- 4LPM
Additional Information:

Why do we need Water Filters?

Giardia / Cryptosporidium

Spare Filtration Cartridges

Spare UV Bulbs

Two Year Back to Base Warranty
Pro Rata Warranty on UV Lamp
It is highly recommended a surge protector is installed (please see dropdown menu) to prevent surges and power cuts damaging the UV unit. This will effect the outcome of the warranty for the ballast and lamp.

How to set up your UV system
