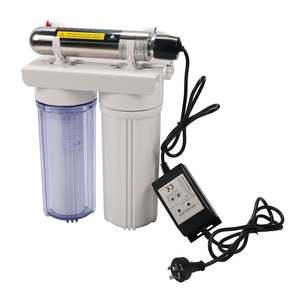

TREVOLI - 3 Stage Underbench UV Steriliser & Filtration System

3S-102UV For Rainwater and Mains Supply Water

The Trevoli 3 Stage Under Bench system consists of twin filters with UV designed for both mains and rainwater supply. This filter system is highly effective in neutralising 99.9% of bacteria and parasites in your water. This system also reduces scale, sediment, silt, sand and algae giving good general-purpose filtration.

Additionally, it comes with a flow switch ballast which turns the lamp on and off when the tap is opened or closed. This easy to install system inactivates bacteria and viruses (such as E-coli, Salmonella) and is perfect for residential properties.

A pressure reducing valve is required for high pressure situations, pressure must be reduced to 250kpa

(See Dropdown menu for Faucet) Specifications:

Stage 1 - Spun PP filter removes particles suspended in water (basically anything you can see)
Stage 2 - Carbon block 5 micron filter removes chlorine, odour, sand, salt and rust particles.
Stage 3 - UV steriliser neutralises 99.99% of harmful bugs

Operating Temperature: 4°C - 40°C
Maximum Flow Rate: 9 Lpm
Connection Size: 6mm
Lamp Wattage: 6w
Ballast: 6w with flow switch - flow switch starts when someone turns a tap on, once the tap is turned off it runs for 5 minutes then switches off Features:

Environmentally Friendly - no chemicals added to water and no water chemistry change
Dual filtration for extra sediment capacity
Optional Stainless Steel Faucet UV Dosage:

Flow rate @40mJ/cm²: 3 Lpm
Flow rate @30mJ/cm²: 5 Lpm
Flow rate @16mJ/cm²: 9 Lpm Additional Information:

Why do we need Water Filters?

Giardia / Cryptosporidium

Spare Filtration Cartridges

Spare UV Bulbs

Instruction Manual

Two Year Back to Base Warranty
Pro Rata Warranty on UV Lamp
It is highly recommended a surge protector is installed (please see dropdown menu) to prevent surges and power cuts damaging the UV unit. This will effect the outcome of the warranty for the ballast and lamp.

How to set up your UV system
