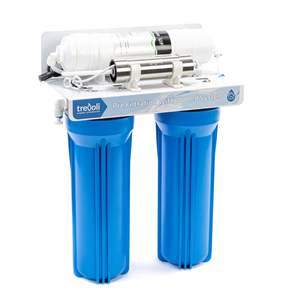

TREVOLI - 4 Stage Underbench LED UV Sterilizer & Filtration System
UVLED82
This system treats Cryptosporidium & more
The Trevoli UVLED82 consists of a twin water filter housing kit, with 1st and 2nd stage filtration to remove sediment, chlorine and more. Attached is an inline ultrafiltration filter and LED UV sterilizer. Designed for both mains and rainwater supply, this filter system is highly effective in neutralising 99.9% of bacteria and parasites in your water. This easy to install system inactivates bacteria and viruses (such as E-coli, Salmonella) and is perfect for residential properties. Environmentally Friendly - no chemicals added to water and no water chemistry change.
(Please note, a pressure reducing valve is included. This must be installed to reduce the pressure to 2.5 Bar) Specifications:
1st Stage - Spun PP (1 micron) filter reduces particles suspended in water (basically anything you can see). Sand, silt, dirt and rust.
2nd Stage - Carbon block (5 micron) filter reduces chlorine, odour, taste, smell, colour, sand, salt and rust particles.
3rd Stage - Ultrafiltration UF (0.1-0.01 micron) is effective for the reduction of colloids, proteins, bacteria, viruses, parasites, protozoa, pyrogens & other organic molecules larger than 0.01 micron.
4th Stage - UV LED sterilizer neutralises 99.99% of harmful bugs.
230v
Operating Temperature: 2°C - 40°C
Maximum Operating Pressure: 116 PSI (8 Bar)
Maximum Flow Rate: 9 Lpm
Connection Size: 6mm
Lamp Wattage: 8w Features:
Comes with faucet
Pressure reducing valve included
Triple filtration for extra sediment capacity, chlorine removal and more
Long lasting LED lamp
Smart Flow Switch
Coated Steel Bracket
Power adapter for UV LED
Attached clamps
Spanner
1/4 Tube 1.5m
Take Off Valve
Dimensions (cm): 31 x 16 x 38.5
Drain Line-to flush the filter out every 6 months or so to help extend the life of the filter UV Dosage:
Flow rate @40mJ/cm²: 3 Lpm
Flow rate @30mJ/cm²: 5 Lpm
Flow rate @16mJ/cm²: 9 Lpm Additional Information:
Why do we need Water Filters?
Giardia / Cryptosporidium
Spare Filtration Cartridges
TWO YEAR WARRANTY
