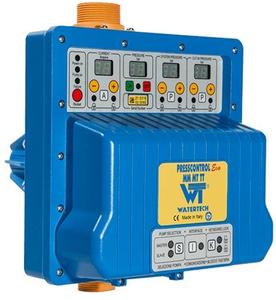

Watertech Presscontrol Evo-Variable Speed Controller
Models:
Communication between devices, allowing you to connect more than one to pump.
Features:
High Quality Italian Design and Manufacturing
Six Options Available
Variable Speed
A user-friendly interface with LED indicators displaying power status, pump running and alarm indication.
Detailed control board which shows user – Amp current, pressure, system pressure and cut in pressure
Single & Three Phase
Anti Jamming Function Technical Features:
Frequency: 50 / 60 Hz
Adjustable system pressure 2- 12 Bar
Adjustable cut-in pressure 1- 11 Bar
Maximum operating temperature -60 °C
Maximum Bar Pressure-16 Bar
Minimum Flow Rate- 1 lpm
IP65 Automatic Restart & Anti-Jamming Function:
In case of stopping due to a water shortage, the device will automatically make 10 double attempts to rearm over the 24 hours following the failure, each lasting approximately 5 seconds to allow, if possible, the pump and the system to reload. The user can try to rearm the device at any time by pressing the Restart button. If for any reason the pump remains idle for 24 consecutive hours, the device will carry. Installation & Start Up
Install the device in vertical position directly on the pump or between the pump and the first tap. Make all electrical connections, give power and wait a few seconds. When the set-up is completed the factory-set current and pressure values will appear on the display (CURRENT 1,5 A - SYSTEM PRESSURE 3,0 bar - CUT-IN PRESSURE 1,5 bar), the Current display starts blinking and the real pressure value of the system appears on the Pressure display. Set the current absorbed by the motor indicated on its nameplate. In order to adapt the system to the desired operation, it may be necessary to set different pressure values from those set by the factory: system pressure 3 bar - cut-in pressure 1,5 bar. Once the values are set, press the button ON (green LED on) to start. When the pump is running, the real value of the current absorbed by the motor appears on the Current display. In the event of a temporary blackout, the device automatically resets itself when electricity.
For more information see brochure below (pages 8-13)
