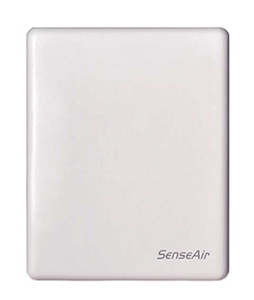

Senseair e-Sense CO2 Transmitter 0-5000ppm

The Senseair eSENSE is a simple, low-cost, state-of-the-art, infrared, maintenance-free carbon dioxide transmitter for installation in the climate zone or in the ventilation duct. eSENSE helps money by decreasing your energy consumption while creating a healthier indoor climate. eSENSE measures the carbon dioxide concentration in the ambient air up to 5,000 ppm CO2 and transforms the data into an analogue output.

eSENSE is an extremely cost-optimised sensor solution. By controlling the ventilation based on actual demand, it helps you decrease energy consumption but still maintain a healthy indoor climate in both residential and commercial buildings.
Specification

Measured gas: Carbon dioxide (CO2)

Operating Principle: Non-dispersive infrared (NDIR)

Measurement range 0─5000ppm

OUT1: 0─10V for 0─5000ppm ±2% of reading ±20mV

OUT2: 2─10V for 0─5000ppm ±2% of reading ±20mV

Accuracy: ±30ppm ±3% of reading

Dimensions: (H x W x D) 100 x 80 x 28mm

Life Expectancy >15years Operation temperature range 0─50°C

Operation humidity range 0─95%RH (non-condensing)

Power supply 24VAC/DC

Power consumption
