Coax Lightning Protector - QTech Data Systems

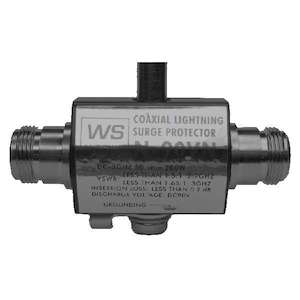

The PD9250 is an industrial grade gas discharge lightning protector for coax antenna systems.

It features low insertion losses and is suitable to use from DC to 3000MHz.

Good earthing is crucial for maximising lightning and discharge protection, and careful installation of equipment at radio sites helps provide further protection.

- Frequency Range DC – 3000 MHz
- Input/Output Impedance 50 Ohms
- Return Loss (dB & VSWR) <-14dB 1.5:1
- Insertion Loss < 0.2 dB
- Maximum Power 200 W
- Connector Type 2 x N Jacks
- Breakdown Voltage 90V

This device features N type connectors, so please ask about our full range of antennas and accessories.

For more information please contact our sales and support team.
