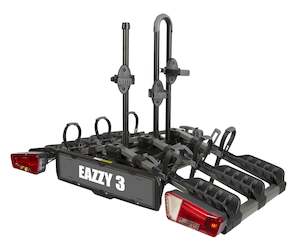

EAZZY 3

Fully foldable EAZZY series of bike racks offer convenient mounting, user-friendly functions and compact storage.

Frame attachment is on the down-frame behind the front wheel. Some bikes with large diameter down tube will not fit this carrier.

- Supplied fully assembled except for the lights.
- Easy, convenient, secure and very stable
- The conic clamp fits all 50 mm tow balls.
- Locks the rack to the tow ball.
- Easy to tilt for tail door access.
- Well balanced during the tilting phase with bikes on.
- Padded rotating frame cradles with ratchet strap
- Wheel holders with quick release ratchet straps and rim padding. Fits up to 4"
- Locking cable included.

NEW Model easy to use three bicycle rack.

TECHNICAL SPECIFICATIONS

Max number of bikes: 3
Max weight per bike: 20 kg
Max load capacity: 60 kg
Fits all ISO 50 mm tow ball: yes
Dimensions (width x depth x height): 117 x 75 x 70 cm
(measured from the centre of the tow ball mount to the outside edge of the number plate holder).
Weight: 16.6 kg
Tilting
Integrated lighting board
Lighting board plug 7 pin flat type
Bike carrier to tow ball lock
Bike carrier to bike lock

The maximum permitted load you can carry is determined by the tow bar nose weight; you will need to check you don't exceed this before using any tow ball mounted bike carrier.
Requires 65mm clearance from center of tow ball to rear of vehicle.
