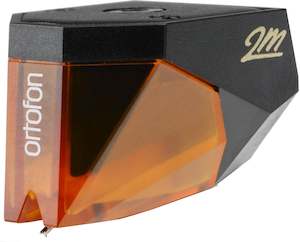

ORTOFON-2M BRONZE MM CARTRIDGE *NEW*

ORTOFON 2M BRONZE MOVING MAGNET CARTRIDGE

Output voltage at 1000 Hz, 5cm/sec. - 5 mV

Channel balance at 1 kHz - 1 dB

Channel separation at 1 kHz - 26 dB

Channel separation at 15 kHz - 15 dB

Frequency range at - 3dB - 20-29.000 Hz

Frequency response - 20-20.000 2 / - 0 dB

Tracking ability at 315Hz at recommended tracking force - 80 µm

Compliance, dynamic, lateral - 22 µm/mN

Stylus type - Nude Fine Line

Stylus tip radius - r/R 8/40 µm

Tracking force range - 1.4-1.7 g (14-17 mN)

Tracking force, recommended - 1.5 g (15 mN)

Tracking angle - 20°

Internal impedance, DC resistance - 1.2 kOhm

Internal inductance - 630 mH

Recommended load resistance - 47 kOhm

Recommended load capacitance - 150-300 pF

Cartridge colour, body/stylus - Black/Bronze

Cartridge weight - 7.2 g

2M PnP MkII cartridge with integrated headshell weight - 20 g

2M PnP MkII cartridge with integrated headshell length - 52 mm
