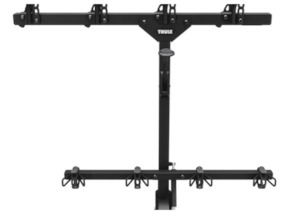

Thule ReVert 4
Dual direction tilt assist damper with memory function - The hydraulic damper provides weight assistance, making it easier to both lower and raise the rack with bikes fully loaded. Accessible tilt release handle for tilting the rack. The rack locks itself when tilted down in the load position. By gently pushing the handle down, the memory function activates which allows the user to let go of the handle and use both their hands to push the rack back up again.
Easy boot access - With bikes mounted, the boot is accessible with a push down handle tilt
Compatible with the full fleet of bikes - 20-29" wheels (20-24" accessory insert sold separately) with tires wide as 5" (3-5" accessory wheel basket sold separately)
High load capacity - The high load capacity of 25kg per bike and a max carrier load capacity of 100kg makes it possible to transport the heaviest bikes and lighter E-bikes
Convenient roll in and roll out bike loading - Quick and easy bike loading and unloading of bikes with limited to no lifting required. Wheel baskets designed to easily roll in and roll out the bikes while the rack is tilted down
No frame or fork contact - Rubber contact only to prevent any frame or fork contact
Generous spacing between bikes - Generous 305mm distance between bikes reduces risk of bike-to-bike contact
Made for long wheelbases - Extra-long wheel holders enable easy transport of bikes with long wheelbases, up to 1350mm
Easy fastening of tyres - Resilient and durable wheel straps for quick and secure fastening of tires up to 3"
Locks for safety - Integrated hitch bike lock to secure your rack to your car
Off-road use - This product is intended for use on public and private roads, including off-roads such as gravel roads, forest service roads and access roads. Refer to definition in the safety instructions
RV Travel - This product is approved for motorized RV travel at reduced load capacity. It is essential to follow the 40% load reduction guidelines provided in the fitting instruction for safe and optimal performance Technical Specifications
Max number of bikes 4
Load capacity 100 kg
Max bike weight 25 kg
Dimension (LxWxH) 76 x 122 x 147 cm
Weight 32.8 kg
Max tyre width 3" (up to 5" with Thule ReVert fatbike wheel adaptor
Max wheel size 29" (20"-24" with Thule ReVert 20/24" wheel adaptor)
Max wheelbase 1350 mm
Distance between bikes 30 cm
Tilt function (with bikes) Yes
Fits 1.25" receivers No
Fits 2" receiver Yes
One Key System Compatible Yes
Bike lock included No
Receiver lock included Yes
Off-road use Yes, refer to definition in safety instruction
RV Travel Yes, refer to definition in user manual
Colour Black
Model Number 9024500
