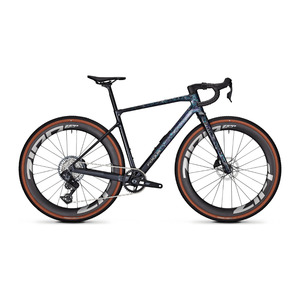

26 Focus ATLAS 8.9

XS S M L XL Size in mm 480 510 540 570 600 Handlebar width 380 400 420 440 440 Stem length 70 70 80 90 100 Crank length 170 170 172.5 172.5 175 Seatpost length 350 350 350 350 400 Seat tube length 440 470 500 530 560 Top tube length 506 531 548 564 593 Head angle (°) 70 70.5 70.5 70.5 70.5 Seat angle (°) 74.5 74 73.5 73.5 73 Chainstay length 425 425 425 425 425 Bottom bracket drop 75 75 75 75 75 Head tube length 105 120 140 160 190 Fork length 425 425 425 425 425 Fork offset 53 53 53 53 53 Wheelbase 1015 1031 1042 1059 1084 Stack 556 572 591 610 638 Reach 365 380 385 395 410 Standover height 757 778 802 825 852 Effective 416 432 447 467 482 Effective Stack 612 628 647 667 695
