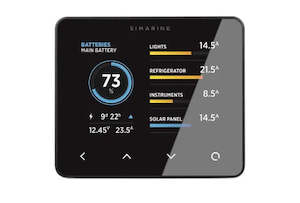

Simarine Pico Battery Monitor (Panel Mount)

SIMARINE’s advanced battery monitor for more demanding users.It can be connected to:

- up to 6 battery banks,
- 6 additional battery voltages
- 14 tank levels (for temperature monitoring)
- 20 consumer or power generation readings.

Compatible with all SIMARINE modules. Operating Power source voltage range 6 - 35 V Temparature range -20 – 70 °C Power consumption at 12 V Operating, WiFi On, 100% illumination 90 mA Operating, WiFi Off, 70% illumination 35 mA Operating, WiFi Off, 0% illumination 18 mA Power Off, logger still active 5 mA Resolution Current (A) ±0,01 A Voltage (V) ±0,01 A Amp hours (Ah) ±0,1 A SOC - Stat of Charge ( 0 - 100%) ±0,01 A Temperature ±0,1 °C / °F Voltage inputs Range 0 – 75 V WIFI Radio Frequency Band 2,4 GHz Dimensions (without connector) Standalon 89 x 84 x 10 mm Panel 108,5 x 94 x 10 mm Connectivity Up to Batteries 6 Shunts 24 Temperature sensors 10 Tank level sensors 14 Inclinometer sensors 2 Smartphone application 1 Logger Capacity up to 3 month
