AL-KO Jockey Wheel Premium 200mm dia c/w Large Locking Pin Swivel Bracket

AL-KO’s premium range of jockeys wheels with swivel brackets enables quick and easy uncoupling of your caravan or trailer. Simply pull the release handle and the jockey wheel rotates between upright and travelling positions. No need to remove it from the trailer anymore.

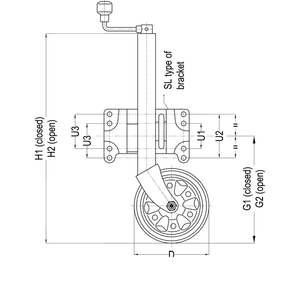

Dimensions

- Outer tube diameter: 48mm
- Wheel diameter: 200mm
- Mounting hole diameter: 14mm
- Min Spacing (U1): 63mm
- Max Spacing (U2): 113mm
- Max Spacing (U3): 88mm
- Height closed (H1): 570mm
- Height open (H2): 820mm
- Bottom of wheel to mounting plate center when closed (G1): 310mm
- Bottom of wheel to mounting plate center when closed (G2): 560mm

Features

- Static capacity: 350kg
- Swivel bracket can be either welded or bolted to the drawbar
- Swivel bracket allows the jockey wheel to stay permanently attached - No need to remove for storage
- Simple swing away action for travelling position
- A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar
- Surface finish: zinc plated - for lasting protection
- Mounting holes per side: 4
- Static capacity: 400kg
- Weight: 8kg
