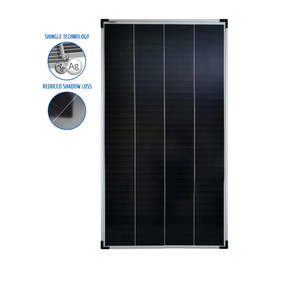

195 Watt Solar PV Panel 24V Shingled Perc Mono

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

Dimensions

- W1473 x H35 x D670mm

Features

PERC Solar cells with shingle technology

Reinforced frame with aluminium angle

35mm Frame with a support surface of 1.2mm thickness

Advantages

More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.

Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.

Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.

Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.

Stability Enhanced reliability and stability. Significantly reduces hot spot effect.

Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.

Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specifications

Peak Power (Pmax): 195.00W

Max Power Voltage (Vmp): 21.76V

Max Power Current (Imp): 9.04A

Open Circuit Voltage (Voc): 31.34V

Short Circuit Current (Isc): 7.95A

Module Efficiency: 19.75%

Max Systems Voltage (V): 1000V

Pmax Temperature Coefficient (W/°C): - 0.41%

Voc Temperature Coefficient (V/°C): - 0.31

Isc Temperature Coefficient (A/°C): 0.05%

Nominal Operating Cell Temp (NOCT): 48±2

Operating Temp: -40 to 85C

Cell Type: PERC Shingled MONO

Cell Quantity: 188 CELL

Weight: 12Kg

Front Glass: 3.2mm High Transmission, Low Iron, Termpered Glass

Surface Load: 5400Pa

Junction Box: IP65 Rated

Output Cables: MC4, 2.5mm2 900mm
