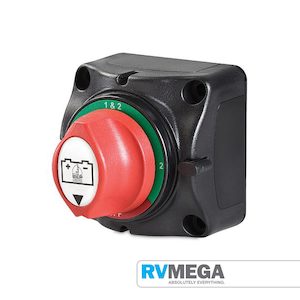

Battery Select Switch

Compact battery selector switch to select either from two power sources or combine together. Will also isolate from the power sources.

Comes with tin plated copper studs and nuts providing you a safe and secure battery switch for your electrical system.

Dimensions

- W68 x H68 x D76mm

Features

- 4 Positions: Off - 1 - 2 - Both
- Mounting: surface or recess mount
- Heavy duty switch for high loads
- Key can be removed in the OFF position, current interrupted
- Positive or negative cable can be switched as required
- Termination: 3x 5/16'' studs
- IP rating: IP56 (Protection against solid foreign objects up to 1mm and powerful water jets)

Voltage 48V DC (max)Intermittent rating 300 amps DCMaximum load 12/24V - 1000A for up to 10 secondsMaximum continuous load 12/24V - 200A
