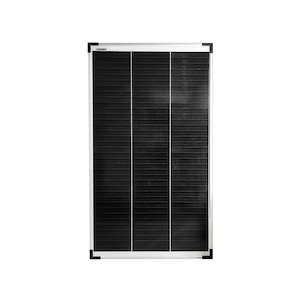

100 Watt Solar PV Panel - Shingled Perc Mono

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

Dimensions

- W 1130 x H35 x D 450mm

Features

- PERC Solar cells with shingle technology
- Reinforced frame with aluminium angle
- 35mm Frame with a support surface of 1.2mm thickness

Advantages

- More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.
- Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.
- Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
- Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
- Stability Enhanced reliability and stability. Significantly reduces hot spot effect.
- Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.
- Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specifications

- Peak Power (Pmax): 100W
- Max Power Voltage (Vmp): 18.20V
- Max Power Current (Imp): 5.50A
- Open Circuit Voltage (Voc): 22.68V
- Short Circuit Current (Isc): 5.66A
- Max Systems Voltage (V): 1000V
- Module Efficiency: 19.2%
- Pmax Temperature Coefficient (W/°C) : - 0.41%
- Voc Temperature Coefficient (V/°C): - 0.31%
- Isc Temperature Coefficient (A/°C): 0.05%
- Nominal Operatings Cell Temp (NOCT): 48±2
- Operating and Storage Temp: -40 to 85°C

Mechanical Characteristics

- Cell Type: PERC Shingled MONO
- Cell Quantity: 108 CELL
- Weight: 5.8Kg
- Front Glasss: 3.2mm High Transmission, Low Iron, Termpered Glass
- Surface Load: 5400Pa
- Junction Box: IP65 Rated
- Output Cables: MC4, 4mm2 900mm
