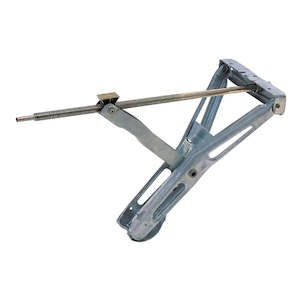

AL-KO Corner Steady 1000kg

AL-KO Corner Steadies develop the maximum load bearing capacity from a setting angle of 45 degrees. If the corner steady is set flatter, the load bearing capacity is reduced.

Suitable for rear fitment to all caravans on an AL-KO Chassis, either as a replacement, or as an upgrade.

Those steadies are easy to operate and provide a stable footing on which to level your caravan. They must not be used as a jacking device for changing tyres.

Features

- Particularly stable due to the pressed side profiles and strong threaded spindles
- Easy to fit mounting brackets are provided on the chassis which allow fast and easy fitment of corner steadies
- Finish: hot dip galvanised Zinc coating with a layer thickness of up to 70 µm - makes it almost indestructible
- Solid and robust steel construction
- Load bearing capacity: 1000kg
- Suitable for caravans with MTPLM of up to 2000kg
- Clean and grease the threaded spindles regularly

Minimum recommended angle of incidence 30 degrees - Load carrying capacity approximately 70%

Maximum recommended angle of incidence 60 degrees
