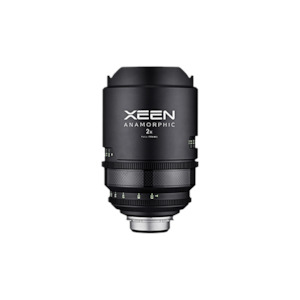

Samyang XEEN Anamorphic 50mm T2.3
Outstanding Usability
Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box. All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments. 300° wide focus gear rotation angle makes you adjust focus minutely.
Specifications
0
0
Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box. All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments. 300° wide focus gear rotation angle makes you adjust focus minutely.
Specifications
Model Name: XEEN Anamorphic 50mm T2.3
Maximum T-stop: T2.3
Image Circle: Ø 43.2 mm
Angle of View Full Frame: H: 68.4˚, V: 26.9˚
Super 35: H: 50.0˚, V: 20.5˚
Focusing Range: ∞ to 1.0m
Focusing Range: ∞ to 3.3ft
Front Diameter: Ø 114mm
Number of Aperture Blades: 15
Rotation Angle of Focus Ring: 300°
Rotation Angle of Aperture Ring: 89.5°
Mount: PL
Size: Ø128.0 x 198.6mm
Weight(Without Lens Cap): 3.9 kg
Squeeze Ratio: X2
Focus Drive Gear: 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane
Iris Drive Gear: 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane
×
