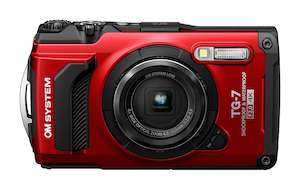

OM System Tough TG-7 Digital Camera
TruePic™ VIII Image Sensor
Type: 1/2.33'' CMOS
Effective pixels: 12 Megapixels
Full resolution: 12.7 Megapixels
Filter array: Primary colour filter (RGB) Lens
Maximum aperture: 2.0 - 4.9
Aspherical glass elements: 3
Focal length (equiv. 35mm): 25 - 100mm
Focal length: 4.5 - 18.0mm
Filter diamater: 40.5mm Adapter CLA-T01 required
Optical zoom: 4x (WIDE)
Structure: 9 lenses / 7 groups Monitor
Monitor type: LCD
Resolution: 1040K dots
Monitor size: 7.6cm / 3'' (3:2)
Brightness adjustment: /- 7 levels
Live View: Available Focusing Sytem
Method: TTL iESP auto focus with contrast detection
AF illuminator: Equipped
AF lock: Available
Standard mode: 0.1m - ∞ (wide) / 0.1m - ∞ (tele)
Super Macro Mode: Closest focusing distance: 1cm
Microscope Mode: capability while being in Super Macro Mode
Focus Bracketing Mode ----------
Number of images: 10 / 20 / 30 shots
Step size: 3 levels
Modes: AF Tracking, AREA, Face Detection AF, Spot, Manual focus, Single AF
Focus peaking ----------
Color selection: White, black, red, yellow
Focus Stacking Mode ----------
Technology: Available
Note: Angle of view becomes slightly smaller Exposure System
Modes: Aperture priority, Programme automatic, Art Filter, Custom shooting, i-Auto, Microscope, Movie, Scene Modes, Underwater
Shutter speed: 1/2 - 1/2000s /< 4s (Night scene / A mode)
Exposure compensation: /- 2 EV / 1/3 steps
Enhancement function: Mechanical Image Stabiliser (Sensor shift)
-----Advanced Face Detection Technology
-----Shadow Adjustment Technology Scene Modes
Number of scene modes: 22
Modes: Backlight HDR, Beach and Snow, Candle, Children, Documents, e-Portrait, Fireworks, Hand-held Starlight, Indoor, Landscape, Landscape with Portrait, Live Composite, Night Scene, Night Scene with portrait, Panorama, Portrait, Sports, Sunset, Construction 1/2/3, Slow Shutter Light Metering
Modes: ESP light metering, Spot metering
Histogram in shooting mode: Available Art FIlter
Modes: Bleach Bypass, Cross Process, Diorama, Dramatic Tone, Gentle Sepia, Grainy Film, Instant Film, Key Line, Light Tone, Pale & Light Colour, Partial Colour , Pin Hole, Pop Art, Soft Focus, Vintage, Water colour
Note: 18 colours selectable Sensitivity
Auto: AUTO
Manual: ISO 100 - 12800 White Balance
AUTO WB system: Applied
Custom WB: 1 setting can be registered at Kelvin temperature (2000K - 14000K)
One-touch white balance: 4 custom settings can be registered
Preset values: 6
Underwater WB presets: 3 Sequence Shooting
Speed (H): Approx. 20fps
-----Max. number of frames: RAW 46 / JPG: 74
Speed (L): 5fps
-----Max. number of frames: RAW 115 / JPG: Up to card capacity
Pro Capture mode----------
Pre-shutter Frames: 5 frames
Speed (H): 10fps
Interval shooting----------
Settings: Time or Frame priority
-----Max. number of frames: 299 (Creation of time-lapse movie possible)
-----Exposure smoothing Image Processing
Noise reduction: Available
Distortion compensation: Available
Engine: TruePic VIII
Pixel mapping: Available
Shading compensation: Available Flash
Modes: AUTO, Fill-in, Manual, Off, Red-eye reduction
Working range (tele): 0.2 - 3.1m (ISO 1600)
Working range (wide): 0.2 - 7.9m (ISO 1600)
Flash compensation: Available Wireless Flash Control
Control method: Triggered and controlled (Olympus Wireless RC Flash system)
-----Commander flash:
Group setting: 1 groups
Compatible external flash: FL-600R, FL-700WR, FL-900R (More available in housing)
Number of channels: 1 channels Still Image Recording
DCF: 2.0
DPOF: Applied
EXIF:2.31
PIM: III Image Size
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1 / 3:4
Resolution: 4000 x 3000 - 640 x 480
RAW: Yes Movie Recording System
Recording format: MOV(MPEG-4AVC/H.264)
Image Stabilisation Mode: Digital Image Stabilisation
4K Movie quality: 3840 x 2160 (4K) / 30p, 25p (approx. 102Mbps)
-----Recording time: 29min.
HD Movie quality: 1080P Recording time: 29min.
-----720P Recording time: 29min.
Note: Speed Class 10 SD card is recommended for shooting movies. UHS-I Speed Class 3 SD card must be used for 4K
