Nauticam Komodo-X Housing for RED Komodo-X - 16122

The KOMODO-X camera features a 6K Super 35 sensor with up to 16 stops of dynamic range. R3D files (REDCODE RAW) can be recorded directly to CFast 2.0 cards, eliminating the need for expensive proprietary media. It also features Canon's new RF mount with full support of the Canon EF to EOS R lens adaptor allowing a wide variety of focal lengths to be used. The KOMODO-X is second in size only to the RED KOMODO allowing it to have one of the smallest form factors of the RED Digital Cinema Lineup. The feature set is clearly aimed at those requiring professional-level specs in a travel-friendly package, which accurately describes the majority of underwater filmmakers. The KOMODO-X includes the next generation of imaging sensors with completely overhauled sensor architecture, updated pixel design, and improvements in both details and color in shadows. INTRODUCING NAUTICAM KOMODO-X

Key Camera Specifications:

- 6K Super 35 Sensor (6144 x 3240)
- R3D Files (REDCODE RAW)
- Records to CFast 2.0 cards
- Canon RF-PL Lens Mount
- Dual Battery Mount (Canon BP-955/975)
- 12G SDI Out
- Integrated LCD Screen with Touch Camera Control
- Wireless Control From a SmartPhone
- Global Shutter
- Anamorphic Options

Recording Formats:

- REDCODE RAW

- 6144 x 3240 at 40 fps
- 5120 x 2700 at 50 fps
- 4096 x 2160 at 60 fps
- 2048 x 1080 at 120 fps
- ProRes 422/ProRes 422HQ

- 4096 x 2160 up to 60 fps
- ProRes 422

- 2048 x 1080 up to 120 fps

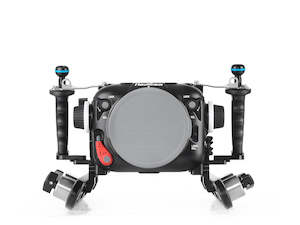

THE NAUTICAM KOMODO-X HOUSING

The Nauticam KOMODO-X housing is engineered in a similar fashion to previous RED KOMODO housing, providing the most compact and travel-friendly system possible. Komodo-X offers seamless integration with DSLR lenses and the same N120 port system used in Nauticam DSLR and Cinema systems. Enjoy unmatched user-friendly setup and intuitive operation including tool-less setup and tear down in minutes. Batteries can be swapped without ever removing the camera from the housing, and lens changes can be accomplished in seconds.

The Nauticam KOMODO-X housing uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for an easy transition to the Nauticam Komodo-X from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.

The housing also features adjustable handles with easy access to the cinema-style and focus knobs. On top of the housing is a 1/4"-20 cheese plate which allows for a wide variety of accessory mounting points.

The Nauticam KOMODO-X is also backed by Nauticam's 2-year warranty. LENS SUPPORT

The RED KOMODO-X is compatible with RED RF-PL adaptors and includes a locking RF mount to give you extra piece of mind. The Nauticam KOMODO-X housing offers full support of the Canon EF to EOS R Adaptor along with the Canon EF to EOS R Adaptor with Variable ND Filter. The left side of the housing features an easily accessible command wheel for smooth ND changes. Regardless of EF or RF lens selection, changing lenses is quick, easy, and doesn't require any tools. Note that when changing between RF and EF lenses, the camera must be removed from the housing to remove or install the RF to EF adapter. Nauticam is constantly testing new lenses to provide optimized port and extension combinations. Large cinema-styled control wheels on the housing, located within easy reach of the handles, provide precise manual focus and control with supported lenses when used with the corresponding lens gear set.

Not being limited to using DSLR lenses is crucial for cinema systems and the Nauticam KOMODO-X housing, when used with the 16410 N120 to N200 Port Adapter can support the use of Cinema Lenses and the associated N200 Port System. Installation is quick, easy and requires no tools allowing seamless lens switching in the field - even when changing between DSLR and Cinema lenses. EXTERNAL MONITOR SUPPORT

The SmallHD Ultra 5 or the Ninja V monitor can also be mounted in the external Nauticam NA-Ultra5 housing or Nauticam Atomos Ninja V-S housing and be connected via SDI bulkheads and cables allowing greater flexibility when positioning the monitor on the Nauticam Komodo-X housing.
SDI OUTPUT

Required accessories for SDI Cable System

- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.4m Length

Recommended monitor housing

- 17922S Nauticam Ninja V-S Housing for Atomos Ninja V 5" with AtomX SDI Module. With the below items or 17926S SDI Cable Set

- 25060 SDI Cable in 0.4m length (SDI cable in 0.4
