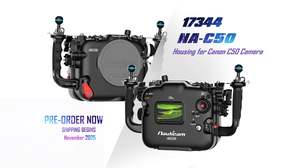

Canon C50 - Nauticam NA-C50 Housing - 17344
Coming soon.
Technical Specifications Dimensions 366mm (W) × 237mm (H) × 131mm (D) Weight in Air TBA kg Weight in Water TBA kg (incl. camera, LP-E6P and Anker 20000mAh Power bank)
Depth Rating 100m Port Mount N120 RF Mount for C50 (20mm shorten than NA-R5C) Accessory Ports Front: 1x M24, 1x M16; Rear: 1x M16 Vacuum Valve 25625 M16 vacuum valve II Handles & Brackets Pre-installed HDMI HDMI 1.4 / 2.0 Compatible Cameras Canon EOS C50 Camera
Instruction Manual coming soon What’s in the box
- NA-C50 Housing
- 90222 Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- USB-C to USB-C Right Angled Cable for Power Delivery
- Housing carry bag and shoulder strap Main Features
- N120 Port Lock II (support to install Extension/Port and lock automatically when the red port lock lever is closed)
- Reserve space on the bottom for power bank
- DSLR Housing lock and tilted handles, Compatible with hand strap (#28130)
- Cinematic style big and focus knob, ADAP FN knob on the top.
- FUNC/M-Fn Lever on the front right
- Double lever on the rear left to access DISP/INFO, and MEDIA/PLAYBACK.
- Double lever on the rear right to access AF-ON and MAGNIFY.
- Flash trigger or X-Sync for still shooting is unsupported.
- Mounting points - Front top: 15x 1/4-20 UNC (for 16701 top handle and 17959 mounting ball), 1x M10 thread hole; Bottom: 3x 1/4-20 UNC (for tripod plate or skids), 6x M5 mounting points (#25218 mounting ball set) Housing O-rings
- 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm) Recommended Power bank (inside housing)
- Nauticam recommends the Anker 20,000 mAh 87W Power Bank, Model number A1383. At time of writing this is unavailable in NZ.
- Maximum Power bank dimensions: 165mm (W) x 76mm (D) x 26mm (H) Recommended Accessories Housing Mounting options
- 16701 Top Handle for E2/F/C70/BGH1/BMPCC/R5C
- 17959 Housing Mounting Ball with 1/4" Screws
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25218 Mounting Ball Set for Tripod
- 25228 M5 strobe mounting ball for housing
Lanyard
- 25413 27cm lanyard with 2 snap hooks Hand strap
- 28130 Hand Strap for 28113 Handles
- 28123 Pair of handles - size S (10mm closer to housing) Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector
HDMI OUTPUT
1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) (TBD)
Compatible Monitor Options
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
2) Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) (TBD)
Compatible Monitor Options
- 16611 Nauticam 7" G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
25082 is required for use with 17922 monitor housing Monitor Mounting system
- 17951 Nauticam Atomos Shogun h
