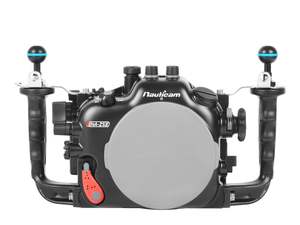

Nikon Z5 II - Nauticam NA-Z5II Housing - 17232
PDF Manual What’s in the box
- NA- Z5II Housing
- Housing Cap
- 2x Optical bulkhead caps
- 2x Handles with mounting balls and 2x handle brackets
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap Features
- DSLR style handles, Port Lock and Rotary Housing Lock.
- Compatible Z mount and F mount lenses with FTZ/FTZ II adapter
- Integrated Vacuum Check and Leak Detection System
- AF-ON and DISP lever on the rear right side.
- Lens REL Lever
- 1/4-20 thread holes on the top (to support 16612/17961 Monitor mount system) Port Adaptors
- 22225 N120 FTZ Adaptor ER 25 with Knob (for Z6III/Z5II)
for use with F mount and Other Z mount lenses. Compatible Gears
- 19200 Z105-F for Nikkor Z MC 105mm F/2.8 VR S
- 19201 Z2450-Z Gear for Nikkor Z 24-50mm f/4-6.3
- 19202 Z1424-Z Gear for Nikkor Z 14-24mm f/2.8 S
- 19203 Z1430-Z Gear for Nikkor 14-30mm f4 S
- 19204 Z2470-Z Gear for Nikkor Z 24-70mm f4 S Flash Triggering
Optical Trigger
- 26350 Flash Trigger for Nikon (Compatible with NA-D5/D500/D850)
- 26352 Manual Flash trigger for Nikon II (for Z6III)
- 26601 HSS TTL Converter for Nikon (NA-Z8/Z9/Z6III) Recommended Aperture in range f16-f22 for TTL mode)
Electrical Triggering
- 25013 M14 Nikonos 5-pin bulkhead with hotshoe connection
- 26326 M24-M16 Adaptor for use with 26325 instead of existing 25081 Recommended Accessories
Housing Mount
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25228 M5 strobe mounting ball for housing
Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Lanyard
- 25413 27cm lanyard with 2 snap hooks
Hand strap
- 28130 Hand Strap for 28113
Handles
- 28123 Pair of handles - size S (10mm closer to housing)
Viewfinder
- 32221 NA-Z5II LCD Window for Nauticam Full Frame Viewfinder (required to use with below Viewfinders)
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL（ 40 ° / 0.8:1 ）
- 87214 Reverse Straight Viewfinder for EMWL （ 40 ° / 0.8:1 ）
Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325 HDMI OUTPUT
1. Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 (instead of existing 25081)
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)
2. Compatible Monitor Options
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) 25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input 17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead) 25082 is required for use with 17922 monitor housing
Monitor Mounting system
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922.) Compatible with NA-Z5II from SN A665554 onwards. Wet Lenses
Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range
