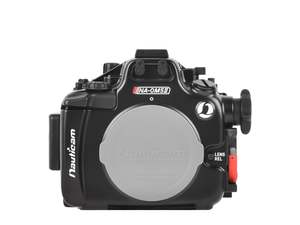

Olympus OM-5 II - Nauticam NA-OM5II Housing - 17822
Instruction Manual What’s in the box
- NA-OM5II Housing
- Housing Cap
- 2x Optical bulkhead caps
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- 90139 Spare main O-ring, O-ring remover and lubricant
- Set of Allen Keys
- Padded housing bag and shoulder strap Main Features
- Rotary style housing lock and N85 port lock
- An M10 threaded accessory mounting point
- One cold-shoe mount on top
- Critical controls are easy to access, such as Front & Rear dial, REC, AF-ON, CP, Fn1 & 2 Lever.
- Integrated Vacuum Check and Leak Detection System Housing O-rings
- 90139 Housing o-ring (I.D.=150mm, C.S.=2.5mm) Port Adaptors
- 36401 N85 to N120 55mm port adaptor
Not Recommended:
- 36052 N85 to N120 47mm port adaptor with knob for M4/3 System.
- 36164 6" Wide angle port with focus knob
Both focus knobs are too close to the zoom/focus knob on housing Flash Triggering
- 26306 Mini Flash Trigger for Olympus (from SN A625591 onwards) Recommended Accessories Housing Tray and Hand Strap
- 71208 Adjustable right handle II (for Easitray II & Flexitray II)
- 71209 Flexitray plate II W with left handle (with 2 tripod holes)
- 71311 Strobe mounting ball for Easitray & Flexitray
- 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
- 36323 Long hand strap for Mirrorless IL camera & compact camera housing Shutter Extension
- 25200 Compact/MIL Housing Shutter Release Extension (for use with 71207, 71209 and 71208)
Not Recommended
- 71206 Easitray II with left handle (with 2pcs 1/4" screws
- 71207 Flexitray II with left handle (with 2pcs 1/4" screws)
71206/71207 is not wide enough to use with 71208 Adjustable right handle II and 25200 Shutter Release Extension Housing Mounting options
- 25311 Strobe mounting ball for cold shoe
- 25321 Long strobe mounting ball for cold shoe
- 25312 Light mounting stem for cold shoe
- 25322 Long light mounting stem for cold shoe
- 25221 M10 strobe mounting ball for housing Viewfinder
- xxxxx NA-OM5II LCD Window for Nauticam Full Frame Viewfinder (TBA)
- 32215 Viewfinder Collar Adaptor for 32211/2/3/4 to use with MIL Housings
- 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
- 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
1. New LCD window and 32215 are required to use with 32211/32213.
2. 32215 is not necessary for use with 32204 or 32205 viewfinder for MIL Housing.
Surface USB-PD Power bank (TBA)
xxxxx USB-C Bulkhead with USB-C Connector (cable in 100mm length) (TBA)
Not Recommended
- 26325 USB-C Bulkhead with USB-C Connector (cable in 200mm length)
The cable is too long to use with NA-OM5II HDMI OUTPUT
1) Required accessories for HDMI 1.4 Cable System
- 25028 Socket extension for 25032 HDMI bulkhead with M16 thread
- 25032 Custom HDMI bulkhead to use with socket extension
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera) TBA
2) Compatible Monitor Options
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
25047 is required for use with 16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
25082 is required for use with 17922 monitor housing Wet Lenses
Macro
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lens
