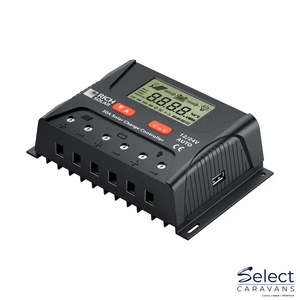

Rich Solar 30A pwm solar charge controller
We have a limited quantity of these Rich Solar controllers. Note they are not boxed and have been removed from new caravans imported from the USA. Features
1. Intelligent Charging System
- Auto Voltage Detection: Auto-sensing 12V/24V system (manual setup available)
- Multi-Battery Support: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types
- 3-Stage PWM Charging: Boost → Float → Equalization (prevents sulfation in lead-acid batteries, excludes GEL/Li)
- Temp Compensation: Auto-adjusts voltage (-3.0mV/°C/2V) for optimal charging (excludes Lithium)
2. Reliable Load Control & Protection
- 5 Operating Modes: Light Control (10-min delay) Timer Control (1-14h) Manual Debug Always ON
- Comprehensive Protection: Overcharge/discharge, overload, short-circuit, and reverse polarity protection
3. User-Friendly & Durable Design
- Clear LCD Display: Dot-matrix screen with real-time monitoring
- Simple 2-Button Control: Adjust settings easily (memory retains configurations)
- Rugged Build: IP30 enclosure, operates from -13°F to 131°F
- Bluetooth Option: Wireless monitoring (optional add-on) Specifications
- Rated Current: 30A
- System Voltage: Auto recognition: 12V / 24V (Manual setup optional)
- Rated Power: 450W @12V / 900W @24V
- Max. Solar Input Voltage:< 55V
- Max. Battery Voltage:< 34V
- No-load Loss:
