Pfaff 1245 Walking Foot - Binder

Pfaff 1245-17/01 Synchronised binding machine

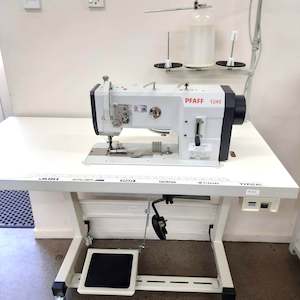

Pfaff Flat Bed Large Bobbin Walking Foot Binder Complete on table with wheels and digital servo motor

Description

The PFAFF 1245 is an universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes,. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articles. Assembly and decorative stitching in small leather goods.

Features

- Cylinder-bed sewing machine for working on tubular or pre attached articles
- Excellent sewing quality with high performance and sewing reliability
- Fewer bobbin changes due to the large hook (40% more bobbin capacity than standard hook)
- Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy
- Applications

Assembly and decorative stitching in small leather goods, shoes, carpet slippers, bags..and much more

Specifications

Needle system: 134-35 LR
Needle size: 80 - 100 Nm
Max. sewing speeds: 2.800 s.p.m
Max. stitch length: 6,0 mm
Top feed stroke: 7,0 mm
Stitch type: 301 (Lockstitich)
Thread type: synth. 40/3
Clearance under the sewing foot: max. 14,0 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz

Product Video

Included Accessories

1 x Packet of needles

6 x bobbins

1 x set of screwdrivers

1 x Machine cover

1 x Instruction manual - sewing machine

1 x Instruction manual - Motor Drive

Downloads

Brochure (General Catalogue)

Download

Spare Parts List / Instruction

Download

Service ManualLeafletInstruction ManualPartslist
