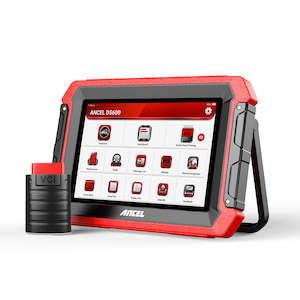

Professional Scan Tool Ancel DS600 Bi-directional ECU Coding 34+ Specials
Buy this tool in November and get Ancel S100 as a free gift!
Professional Scan Tool Ancel DS600 Bi-directional ECU Coding TPMS 34
Smart Solutions Store is the only authorised Ancel distributor. Buy with confidence with full local support!
ANCEL DS600,based on the Android 10 System,is a new generation of modular high-end intelligent diagnostic equipment developed by ANCEL, featuring fully updated software's and powerful design of widespread vehicle coverage, abundant professional diagnostic features and exceptional hardware configuration., is the ideal scanner for professional mechanics and auto repair stores to perform all-around fixes and comprehensive tests.
Wifi Bluetooth-compatible with 34 Special Functions
ECU Coding
Bi-directional
2 Year Free Update Online
Android 10.0
Multi Languages Supported
2GB RAM 32GB Storage
10,000 car models, incl Holden and Ford AU
OBDI adapters
ANCEL DS600 OBD2 Full System Diagnostic Scanner Professional
For 2017 and later FCA Vehicles with Secure Gateway Module (SGW)
Register with AutoAuth to enable your ANCEL DS600 tablet to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and bi-directionals without using a bypass cable
ANCEL DS600 Support 34 Special Functions
1.Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the cluster or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.
2.DPF Regeneration
DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.
DPF regeneration may be performed in the following cases:
a)The exhaust back pressure sensor is replaced.
b)The PM trap is removed or replaced
c)The fuel additive nozzle is removed or replaced
d)The cataytic oxidizer is removed or replaced.
e)The DPF regeneration MIL is on and maintenance is performed.
f)The DPF regeneration control module is replaced.
3.AFS(headlamp) Reset
The feature is used to initialize the adaptive headlamp system.According to the ambient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
4.EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation)valve after it is cleaned or replaced.
5.Brake-pad Reset
If the brake pad wears the brake pad sense line,the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad,you must reset the brake pad.Otherwise,the car alarms.
Reset must be performed in the following cases:
a)The brake pad and brake pad wear sensor are replaced.
b)The brake pad indicator lamp is on.
c)The brake pad sensor circuit is short,which is recovered.
d)The servo motor is replaced.
6.IMMO Service
To prevent the car being used by unauthorized keys,the anti-theft key matching function must be performed so that the immoblizer control system on the car identifies and authorizes remote control keys to normally use the car.When the ingnition switch key,ignition switch,combined instrument panel,ECU,BCM,or remote control battery is replaced,anti-theft key matching must be performed.
7.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.
8.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
9.Steering Angle Reset
To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this positi
