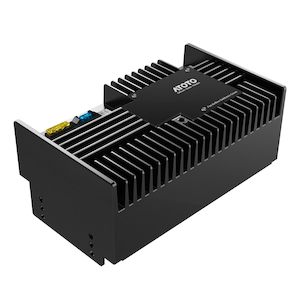

Car Audio Amplifier ATOTO CA-AEC02 4CH Class A/B 392W Max

The ATOTO 4-Channel full-range amplifier CA-AEC02 boasts sophisticated hardware, delivering a powerful 60W RMS x 4 at 4Ω and 98W MAX. x 4 at 4Ω. Ideal for those seeking a sound system boost without the space for a larger amplifier, it provides nearly three times the power of the head unit's built-in power. Additionally, it supports SPDIF input for a more precise sound experience.

With a full frequency range of 20Hz~20KHz, the CA-AEC02's frequency response creates a smooth and stable curve in the treble part, surpassing many other amplifiers limited to 30Hz-15KHz. Immerse yourself in a rich sonic experience, especially for soprano and tenor details. The amplifier features Variable Gain Control, Thermal Protection, Short Output Protection, and a Fan Airflow Guidance Cover.

​Measuring 172 x 100x 72mm (L x W x H), the CA-AEC02 offers two installation methods. First, it can be installed alongside the Head Unit into the double DIN opening on the dashboard. Alternatively, it can be placed in other locations like under the glove box or the co-pilot seat. The simple speaker-level harness requires no soldering or additional wiring, reducing the risk of sound feedback from complicated wiring and grounding issues.

Compatible with ATOTO, aftermarket, and factory head units, depending on the chosen installation method. For ATOTO short chassis head units, both installation methods (1 or 2) are applicable. For ATOTO long chassis head units, aftermarket, and factory head units, installation method 2 is applicable. A DC-to-DC transformer converts dynamic 12V-14V from the car battery to a stable 16V, ensuring consistent and reliable sound performance.
