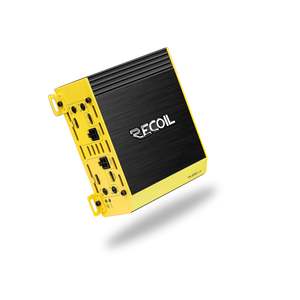

Recoil RL680.4 680 WATTS FULL RANGE CLASS-D 4-CHANNEL AMPLIFIER
Unleash the full potential of your car audio system with the RL680.4 680W Full-Range Class-D 4-Channel Amplifier. Designed for superior efficiency and powerful performance, this amplifier delivers crystal-clear sound and dynamic power while maintaining a compact footprint.
Compact & Efficient Design
Built with Class-D efficiency, the RL680.4 minimizes heat and power consumption while delivering high output. Its compact dimensions (108mm x 125mm x 51mm) make installation easy, even in tight spaces. Built for Performance Enthusiasts
Whether you're upgrading your car’s audio system or looking for a high-performance multi-channel amplifier, the RL680.4 delivers clean, powerful sound with uncompromised efficiency and protection.
SPECIFICATIONS
4 Way Protection Circuit:Thermal, Voltage, Speaker, DC
Power @1Ohm (14.4V):N/A
Power @2Ohm (14.4V):170W x 4
Power @4Ohm (14.4V):95W x 4
Power (Bridged) @4Ohm (14.4V):250W x 2
Power (Bridged) @2Ohm (14.4V):N/A
Operating Voltage:9V-16V
Idling Current (Power On):750mA
Frequency Response:20Hz-35kHz
Signal to Noise Ratio (SNR):89.9dB
THD N (@1W):0.16%
Input Sensitivity(Low Level):220mV-12V
Input Sensitivity(High Level):N/A
Bass Boost:N/A
Subsonic Filter:N/A
Crossover LPF:30Hz-300Hz
Crossover HPF:30Hz-300Hz
Bass Remote:N/A
Clip Indication:1%
Fuse Rating:35A
Dimensions:3.97″x4.92″x2″(108mmx125mmx51mm)
